Ultra-Thin Glass Loading Manipulator

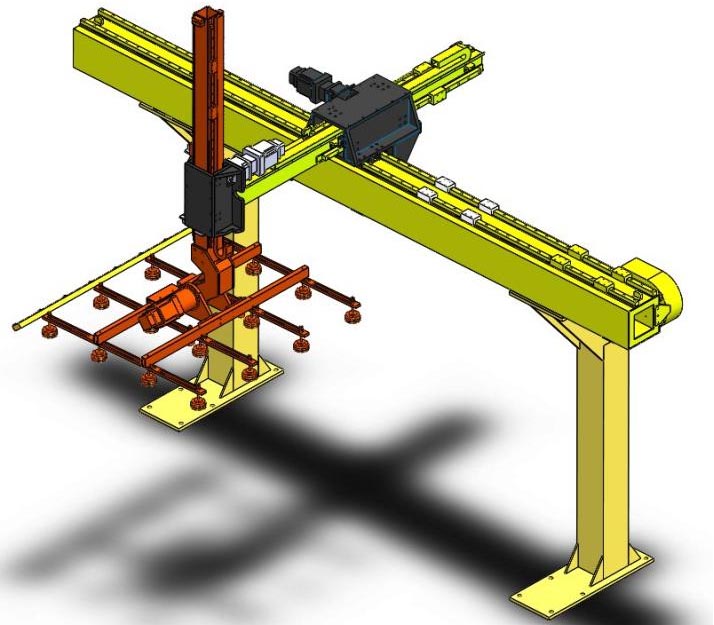

1.Diagram：
2. Technical Specifications:
-
Application: Suitable for glass transfer
-
Applicable Glass Thickness: 0.4–4 mm
-
Vacuum Suction Cup Handling Capacity: Up to 1900 × 1500 mm glass sheets
-
Overall Dimensions: Approx. 4200 × 2800 × 3500 mm (L × W × H)
-
X-Axis Travel: 4200 mm; Speed: 30 m/min
-
Y-Axis Travel: 1000 mm; Speed: 30 m/min
-
Z-Axis Travel: 1000 mm; Speed: 30 m/min
-
W-Axis Rotation: 0–120° continuous rotation
-
Loading Cycle Time: 0–30 seconds
3. Mechanical Components:
-
Automatic Loading Unit: Uses imported gears
-
Rack and Pinion: THK brand
-
Slide and Rail Structure: Hiwin linear guides
-
Drive: Imported servo motor with reducer
-
Motion Control: 5-axis servo motor linkage for high-speed loading
-
Columns: Made of national standard steel with painted surface
-
Crossbeam: Precision aluminum
-
Suction Cup Frame: Imported aluminum 6061
-
Suction Cups: Non-marking type
4. Electrical Components:
-
Servo Motors: Inovance (汇川)
-
Air Circuit Breaker: Taian, with leakage protection
-
AC Contactor: Taian
-
Push Buttons, Indicator Lights, Selector Switches: Izumi
-
Switching Power Supply: Omron
-
Relays: Omron
-
Pneumatic Components (Entire Machine): SMC
5. Control System:
-
PLC Controller: Inovance
-
HMI Operation: Weintek touchscreen
6. Factory Requirements：
No.
|
Name
|
Specification
|
Remarks
|
|
1
|
Voltage
|
3-Phase 380 V
|
|
|
2
|
Frequency
|
50Hz
|
|
|
3
|
Total Power
|
Approx. 5.5 kW
|
Actual power consumption may vary
|
|
4
|
Air Supply
|
Compressed Air
|
|
|
5
|
Air Pressure
|
0.4–0.6 MPa
|
Type: Filtered and Dry
|
|
6
|
Vacuum Negative Pressure
|
–10 kPa ~ –50 kPa
|
|
|
7
|
Test Glass
|
According to customer’s material specifications
|
|
