1. Product parameters:

Serial number	Project name	Content
1	Equipment name	Dual-head RF wide-width plasma cleaning machine
2	Equipment model	YR-800L2-A01

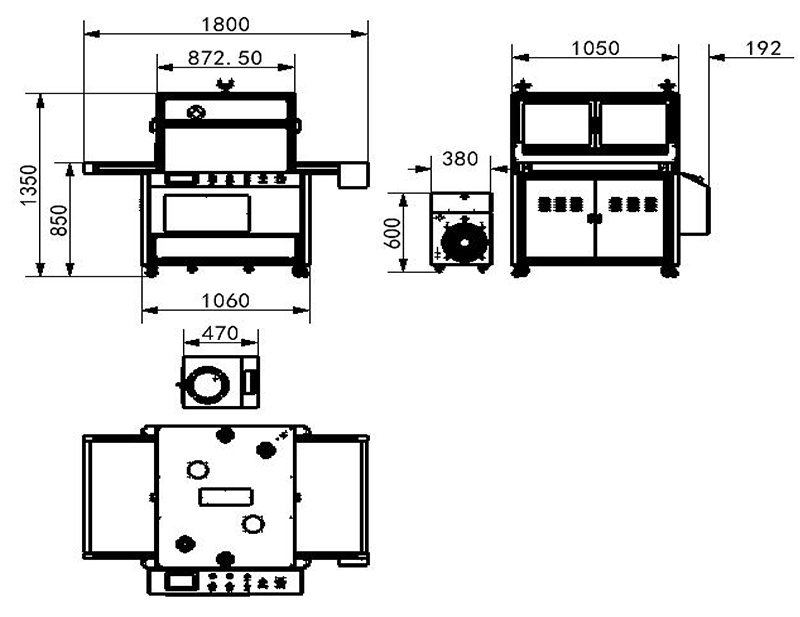

3	Dimensions	Approximately 1800mm*1250mm*1350mm
4	Workbench height	900±50mm
5	Working area size	800mm
6	Appearance color	Silver gray
7	Processing product size range	＜800mm
8	Surface treatment method	Plasma
9	Equipment working noise	＜60dB (decibel)
10	Total equipment weight (T)	0.2
11	Weight per unit area	≤0.75T/㎡
12	Total power (KW)	3

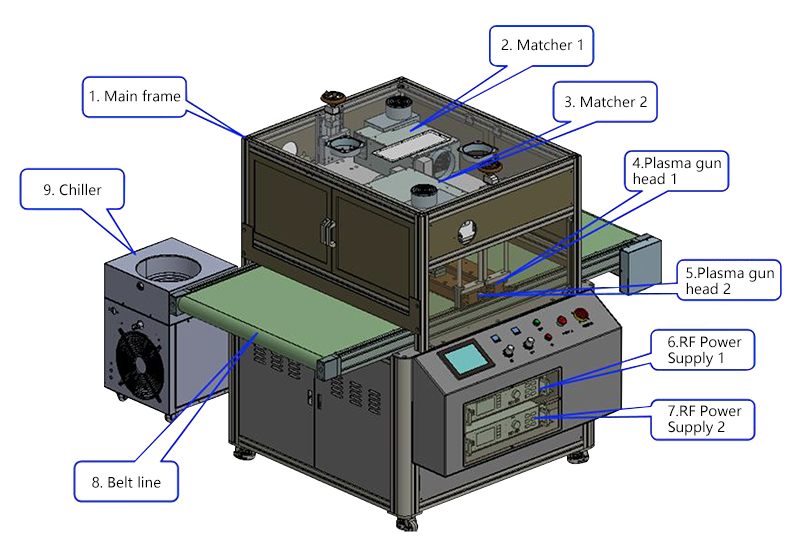

2. Main accessories:

Serial number	Name	Model and specification
1	Plasma power supply	MAK 0-1000W
2	Plasma matching device	CSL1500 (top copper column output)
3	Pipeline	Length 1500mm*width 820mm
4	PLC controller	Siemens
5	Touch screen	Wei Lun
6	Plasma gun head	R800-V2
7	Flow meter	Ar and O₂
8	Chiller	IC1250
9	Pneumatic components	SMC
10	Inverter	Delta
11	Servo system	Mitsubishi/Yaskawa
12	Switching power supply	Omron

3. Safety protection:

Warning signs;
Electrical control system has overload protection function;
Grounding wire;
Alarm prompt.

4. Warranty period and after-sales service response:

After the equipment is installed and debugged at the factory and mass-produced, it can enter the acceptance process. The warranty period is calculated within one year after the equipment is accepted. During the warranty period, all equipment failures caused by non-human factors must be handled by the supplier as soon as possible. If they cannot be solved remotely, suppliers within the province must arrive at the Treasure factory within 12 hours of receiving feedback from the problem (special cases are handled by both parties through negotiation), and cross-provincial suppliers must arrive at the Treasure factory within 24 hours of receiving feedback from the problem (special cases are handled by both parties through negotiation). No fees shall be charged during the handling process.
