LCD Glass Double-Sided Cutting Machine
1. Equipment technical parameters:
No.
|
Name
|
Technical specifications
|
|
1
|

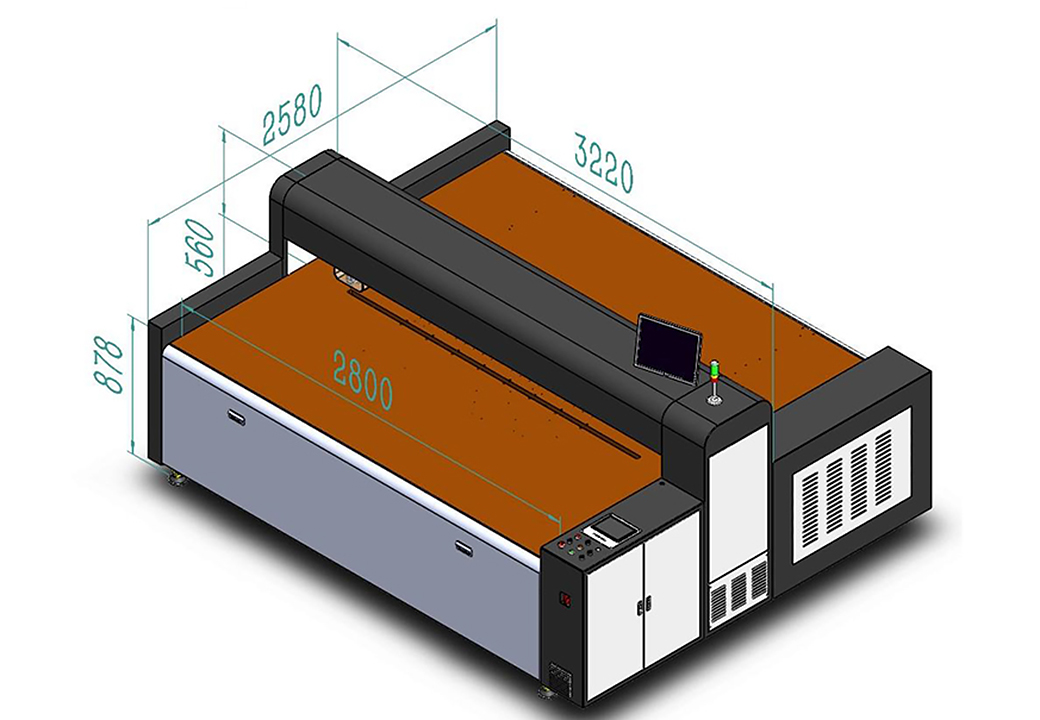

Machine dimensions
|
(L) 2580* (W) 3220 * (H) 1438mm
|
|
2
|
Effective size of cut glass
|
1913*1084mm
|
|
3
|
Minimum finished size of cut glass
|
200*200mm
|
|
4
|
Cutting thickness
|
0.5-3mm
|
|
5
|
Vertical accuracy of glass size
|
≤0.05℅
|
|
6
|
Beam processing accuracy
|
±0.015mm
|
|
7
|
Cutting speed
|
0-50m/min
|
|
8
|
Machine weight
|
<4000KG
|
|
9
|
Cutting head
|
Upper and lower double cutters (moves only in the X-axis direction)
|
2. Equipment mechanical configuration:
No.
|
Name
|
Structure Specification Model
|
|
1
|
Transmission system (motor)
|
Taiwan Delta servo motor
|
|
2
|
Mechanical configuration
|
Precision belt drive
|
|
3
|
Cutting table
|
Precision iron plate (or marble), air flotation device
|
|
4
|
Positioning device
|
Mechanical positioning device, CCD visual positioning
|
|
5
|
Positioning method
|
Manual loading and unloading, mechanical positioning device, manual positioning CCD auxiliary
|
3. Equipment electrical and gas configuration:
No.
|
Name
|
Specification Model
|
|
1
|
Starter element
|
Japan SMC
|
|
2
|
Electrical components
|
Taiwan Sanhe
|
|
3
|
Relay
|
Taiwan Taian
|
|
4
|
Proportional valve
|
Japan SMC
|
|
5
|
Filter, solenoid valve
|
Japan SMC
|
|
6
|
Switch power supply
|
Taiwan Mean Well
|
|
7
|
Button, indicator light, selector switch
|
Taiwan Sanhe
|
|
8
|
AC contactor
|
Taiwan Taian
|
|
9
|
Air switch
|
Taiwan Taian (with leakage protection function)
|
|
10
|
Bearing
|
Japan NSK
|
|
11
|
PLC
|
Weilun
|
|
12
|
Power supply
|
380v
|
|
13
|
Air pressure
|
0.4-0.6MP (filter, dry air source), customer-provided vacuum pump air source
|
|
14
|
Total power
|
3.7KW (including a glass breaking table)
|
4. Delivery list of several units:
No.
|
Main delivery
|
|
1
|
1 set of cutter heads (including: cutter wheel, cutter clamp, small shaft), 1 set of copper sleeves
|
|
2
|
1 set of debugging tools
|
|
3
|
1 user manual (including software instructions and maintenance instructions)
|
|
4
|
1 software backup
|
|
5
|
1 system backup
|
|
6
|
1 glass breaking table
|
